DOMEBASE™ MODULAR PLATFORM SYSTEM
2m x 2m Modular Panels (4m²)
Interlocking Connection System
2m x 2m Modular Panels (4m²)

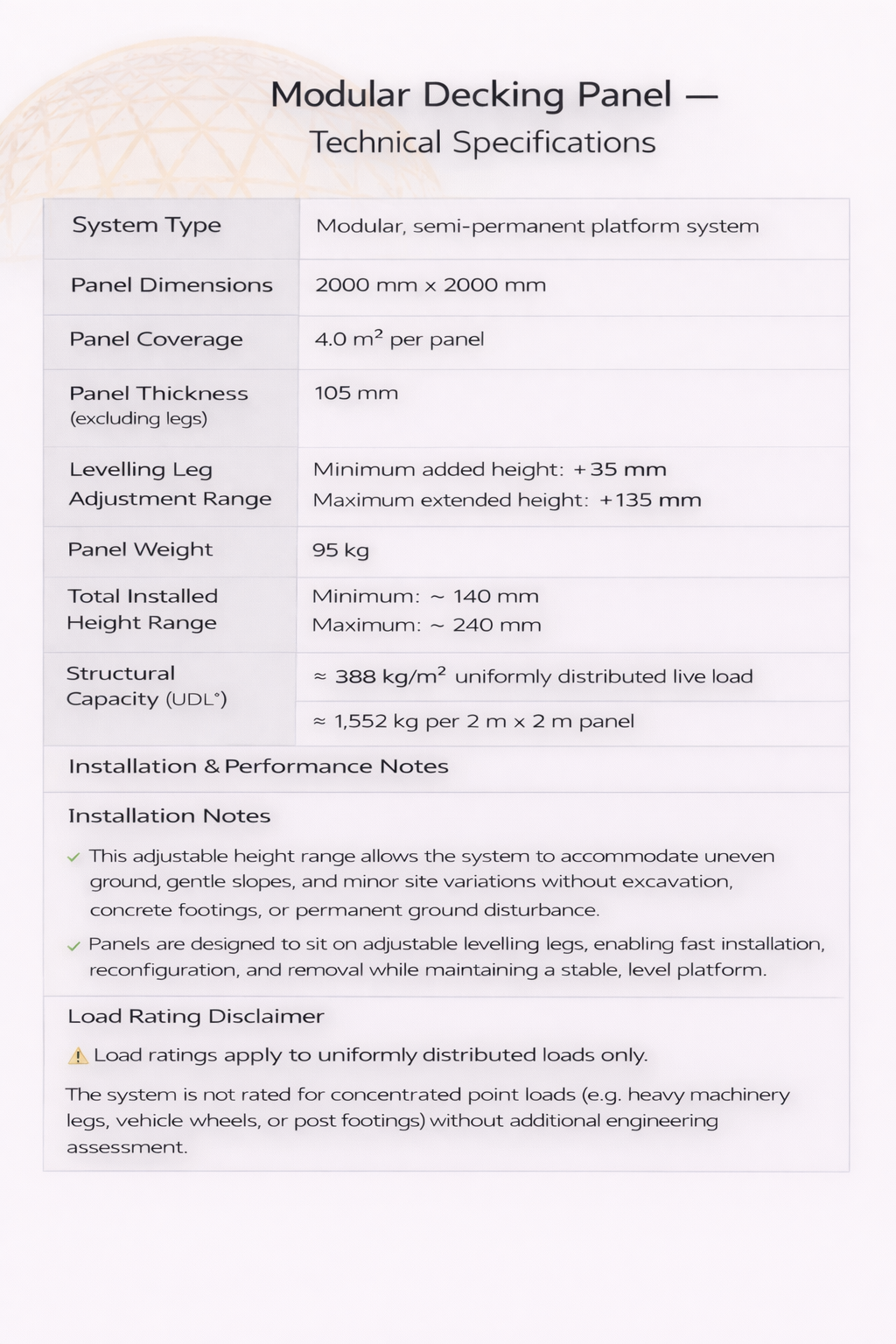

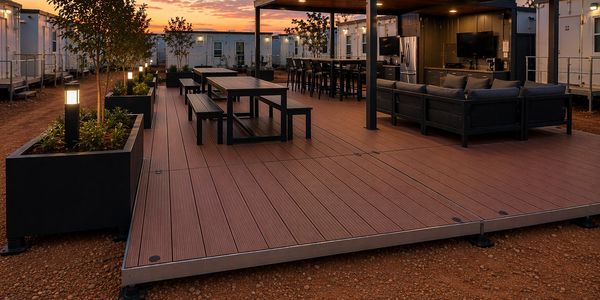

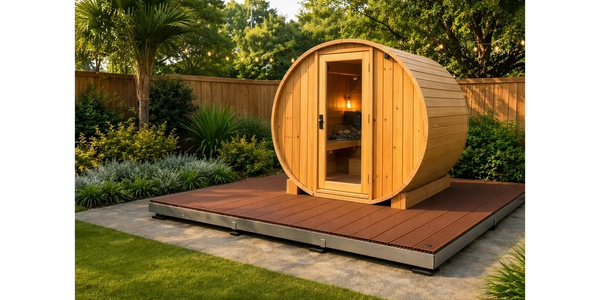

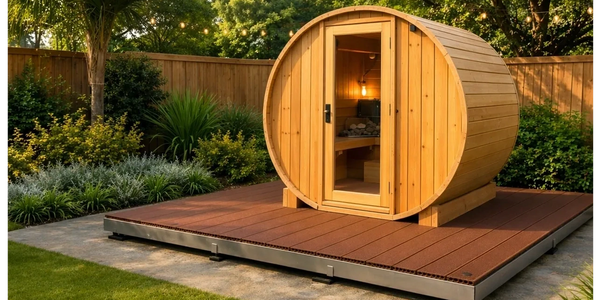

The DomeBase Modular Platform System is a prefabricated structural platform system designed to create level deck platforms without concrete foundations or excavation.
Adjustable Levelling System
Interlocking Connection System
2m x 2m Modular Panels (4m²)

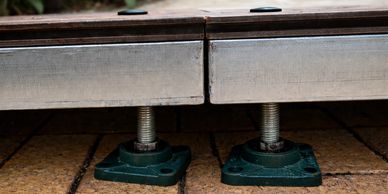

Precision-adjustable support system — engineered for simple on-site levelling, with a height range from 140 mm to 240 mm for accurate installation across uneven ground.
Interlocking Connection System
Interlocking Connection System
Interlocking Connection System
.jpeg/:/cr=t:53.05%25,l:44.02%25,w:51.02%25,h:34.01%25/rs=w:388,h:194,cg:true,m)
Each modular decking panel is fitted with integrated steel locking clasps that securely connect adjoining panels into one continuous, stable platform.
WPC Decking Surface
Structural Steel Frame
Interlocking Connection System

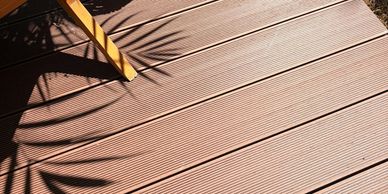

Eco-durable WPC composite decking
Engineered with wood-plastic composite boards for a premium finish, combining natural timber aesthetics with enhanced durability and minimal maintenance.
2000 mm × 140 mm boards | 25 mm thick
Structural Steel Frame
Structural Steel Frame
Structural Steel Frame
A precision-engineered steel frame using 40 × 80 mm structural members (1.5 mm thick), reinforced with 40 × 60 mm internal supports and fully TIG welded for strength. Hot-dip galvanised for long-term corrosion resistance in outdoor environments.
